Moon Frame 2.0 Links – Connectors That Overcome All Obstacles
Moon Frame 2.0 Links is a system of connectors designed to solve the most challenging mounting problems inside a vehicle. Engineered for maximum flexibility and adaptation to various surfaces, they are an essential part of the entire Moon Frame 2.0 system.
Discover Moon Frame Links!

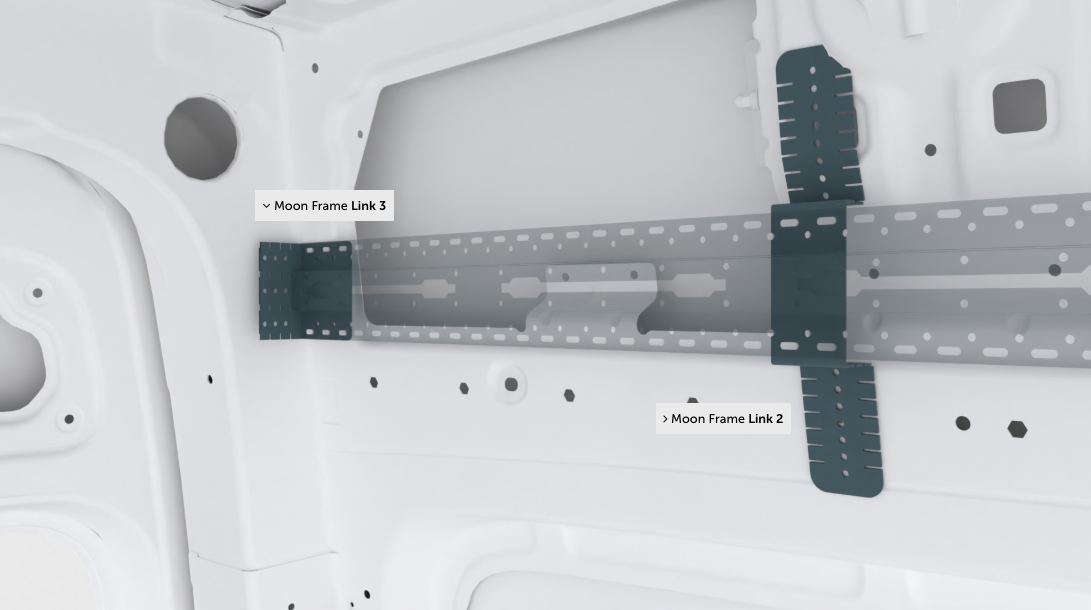

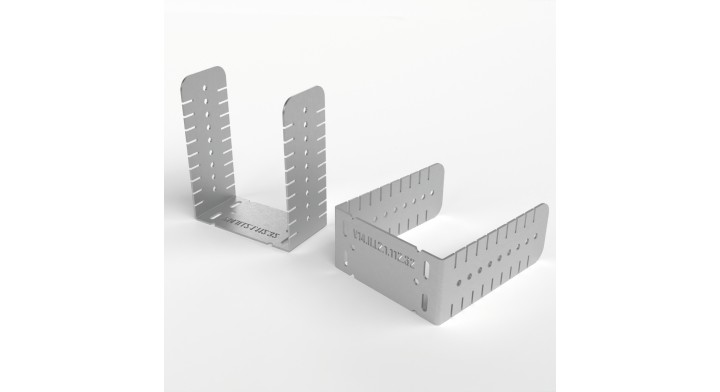

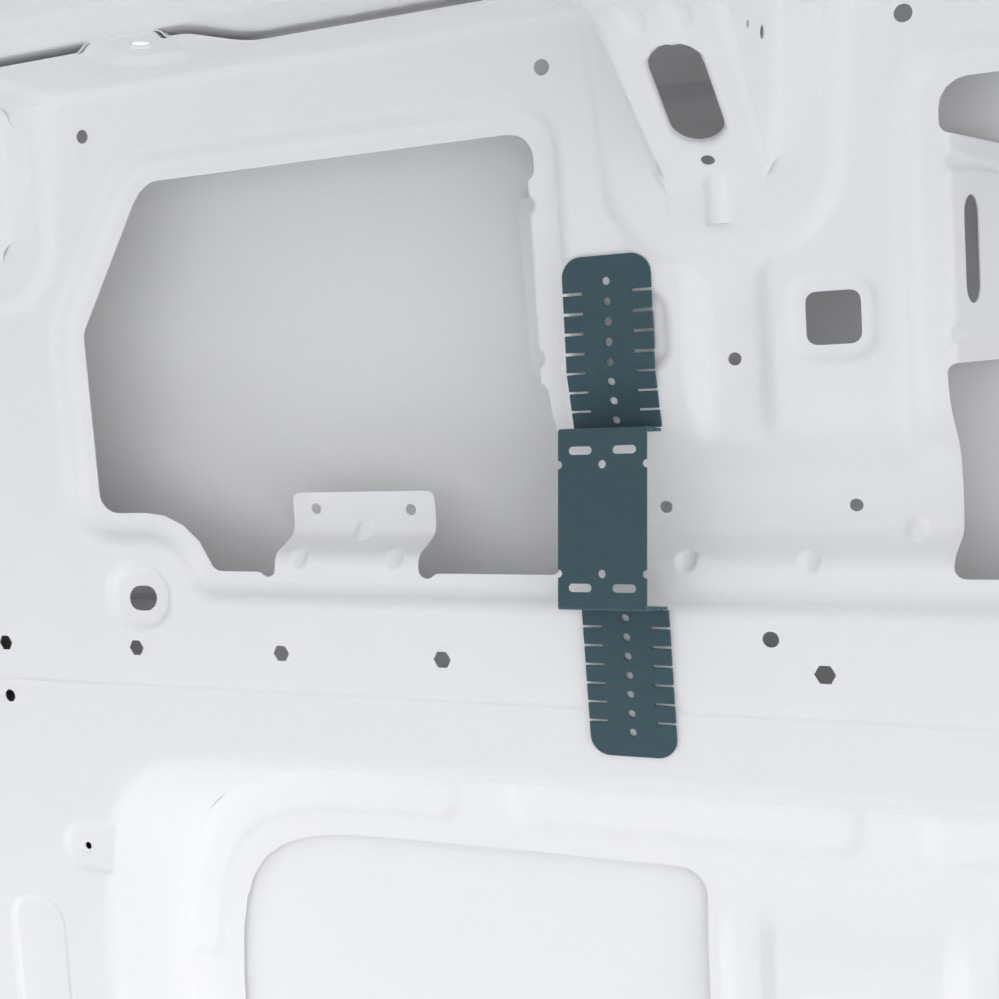

An innovative U-shaped connector that revolutionizes installation on reinforcements, embossings, and projections of a vehicle. Every van has characteristic structural elements that often complicate mounting. Link 2 elegantly solves this problem. Moon Link 2 can be easily adjusted – bend it using pliers to fit any surface, ensuring a secure mount even on uneven areas.
Moon Link 2 is sold in a set of 2 pieces per package.

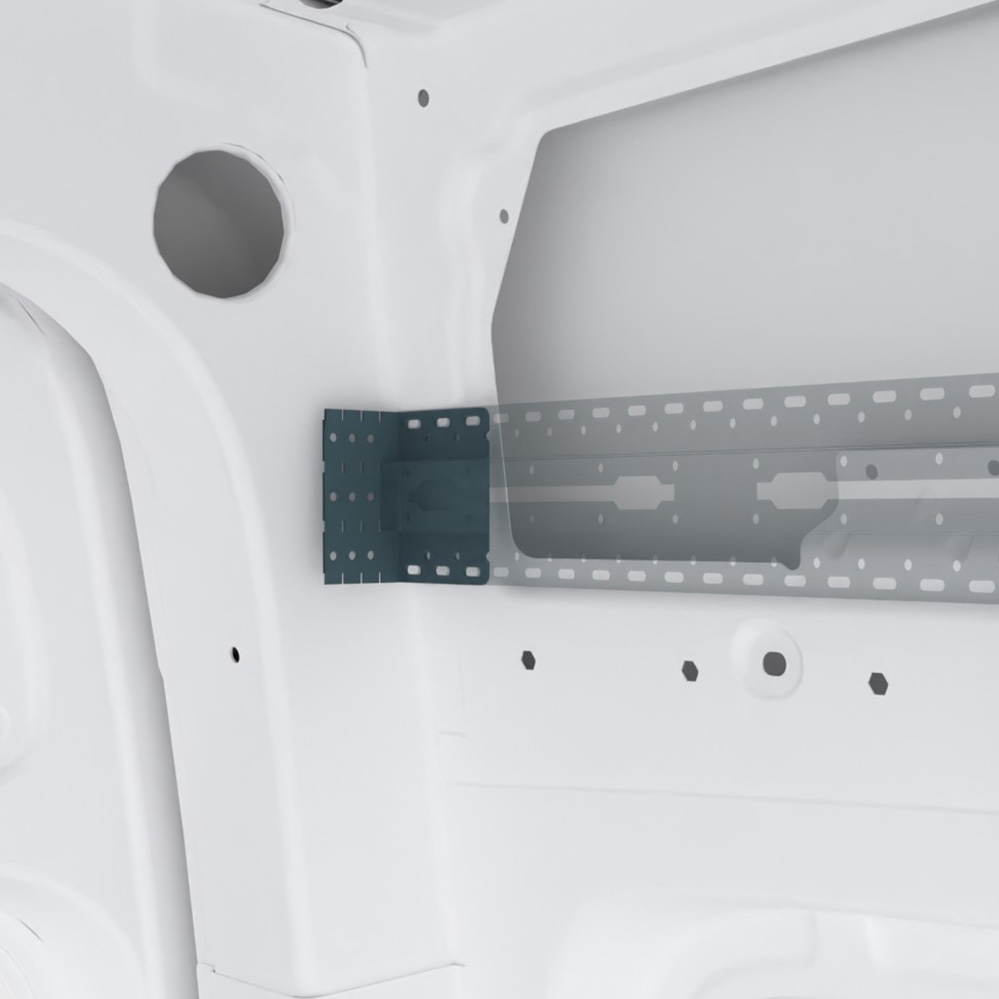

A practical L-shaped connector, ideal as a finishing element. It works perfectly in boundary areas of the vehicle, such as joining the ceiling to the wall or at the end of structures. Moon Frame Link 3 facilitates the installation of the Moon Frame Base on the rear frame and ceiling.
Moon Link 3 is sold in a set of 2 pieces per package.
FAQ
What are the recommendations before installation?
Before installation, it is advisable to align the links with the vehicle’s reinforcements. Components can be trimmed and bent to fit the mounting location.
Can Moon Frame be cut to the desired length?
Yes, it can be cut with a hacksaw.
What length of rivets should I use?
The recommended length of rivets is 4/10 mm.
What is the Moon Frame installation about?
Moon Frame can be installed using rivet nuts or pop rivets with a diameter of 4 mm.
How do you solve the issue of thermal bridges?
Moon Frame 2.0 is installed after insulation is applied but before the upholstery (since it is used for mounting it).
Is it possible to quickly remove the cover to take off the upholstery?
Yes, you simply need to drill out the rivets or unscrew the rivet nuts without damaging the Moon Frame structure.
How many rivets (mounting points) are needed for the Moon Frame to hold?
One rivet can withstand a pull-off load of 5 kg.
Can painted Moon Frame 2.0 Links be ordered?
No. The links are installed beneath the Moon Frame 2.0 Base and remain hidden once the upholstery is in place
Can the rivets be concealed?
Yes, using a RAL marker (retouching marker with opaque paint).
