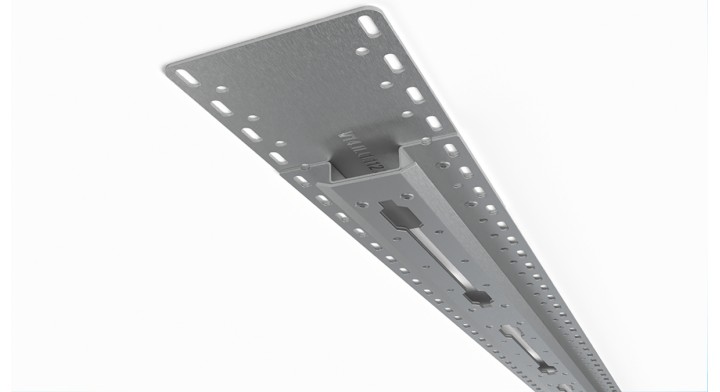

Moon Frame 2.0

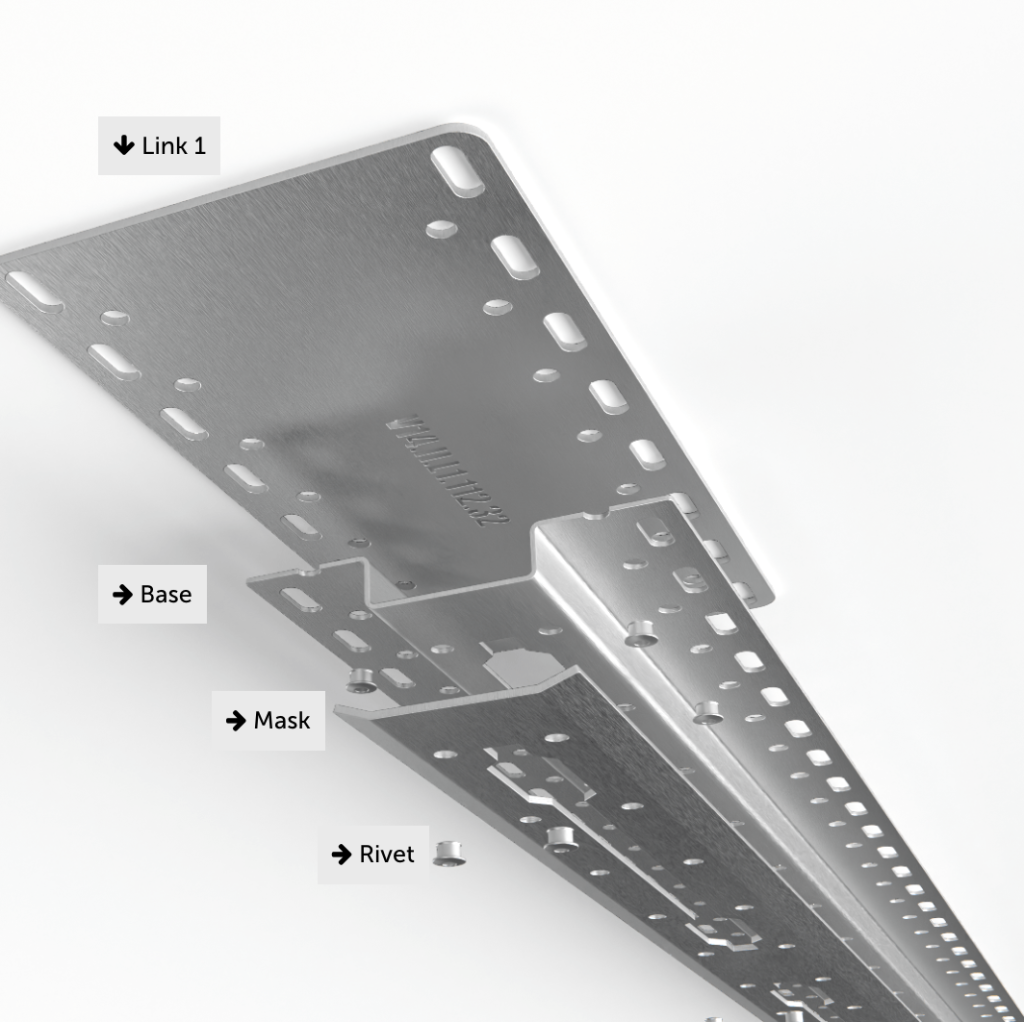

Moon Frame 2.0 Set consists of a Base element, one of three Masks, and a Link 1 connector that allows you to join two Bases together.
Moon Frame 2.0 Set will allow you to quickly and conveniently install upholstery in your campervan.
Choose the right set:
Universal
Available in sets with three different masks, adapted to specific needs. Elastic aluminum allows you to bend selected elements to your needs.
Easy installation

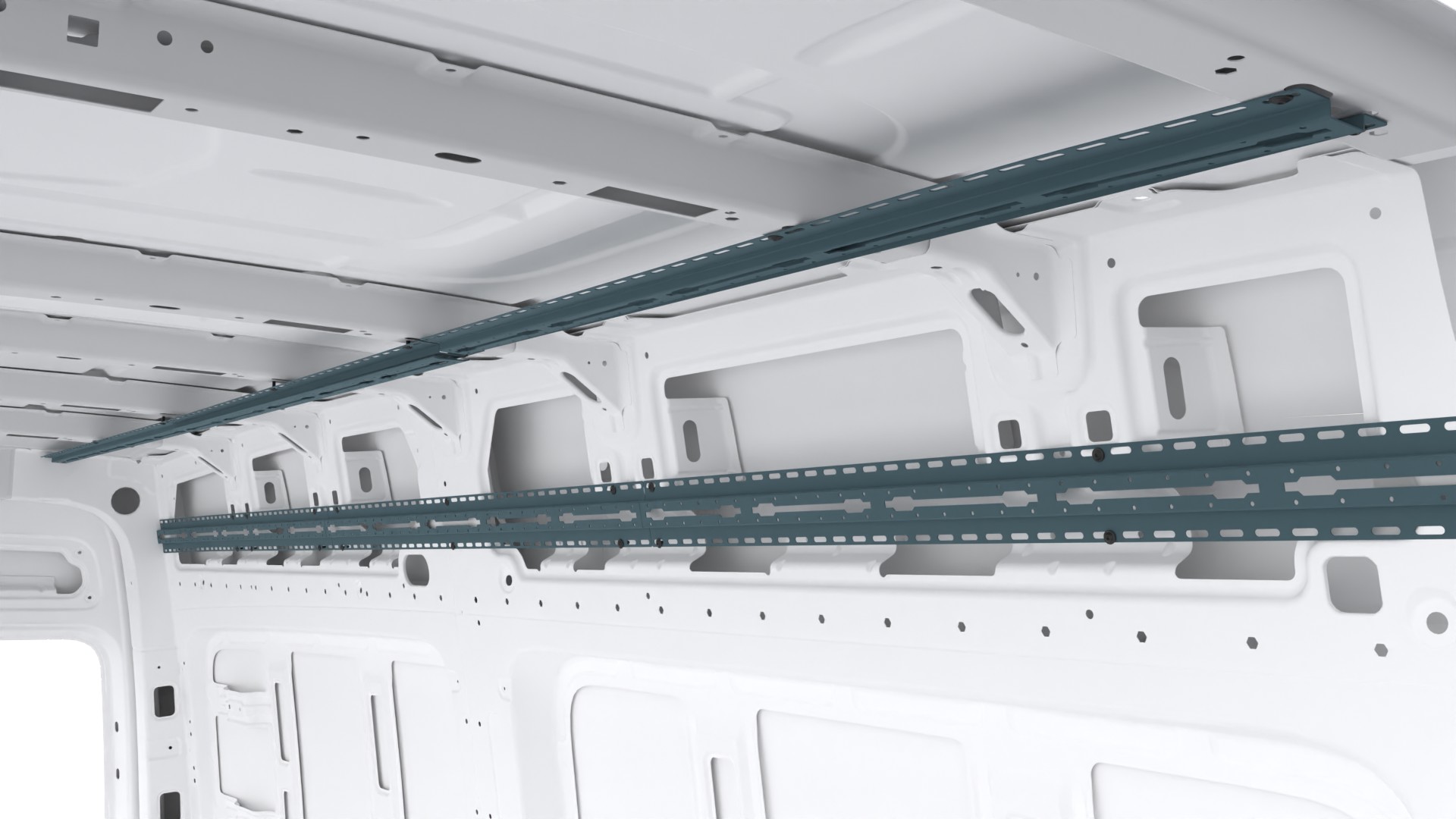

Thanks to elements such as Link 2 and Link 3, installation is quick, and the system can be customized to specific needs. Elements can be easily shortened, connected, and adapted to different surfaces.
Lightweight and durable
The system is light but very durable, which means it doesn’t significantly increase the weight of the vehicle. All elements are made of solid aluminum, which ensures construction durability.
Functionality
An ideal solution for hanging Moon Boxes, upholstery, and electrical installation.

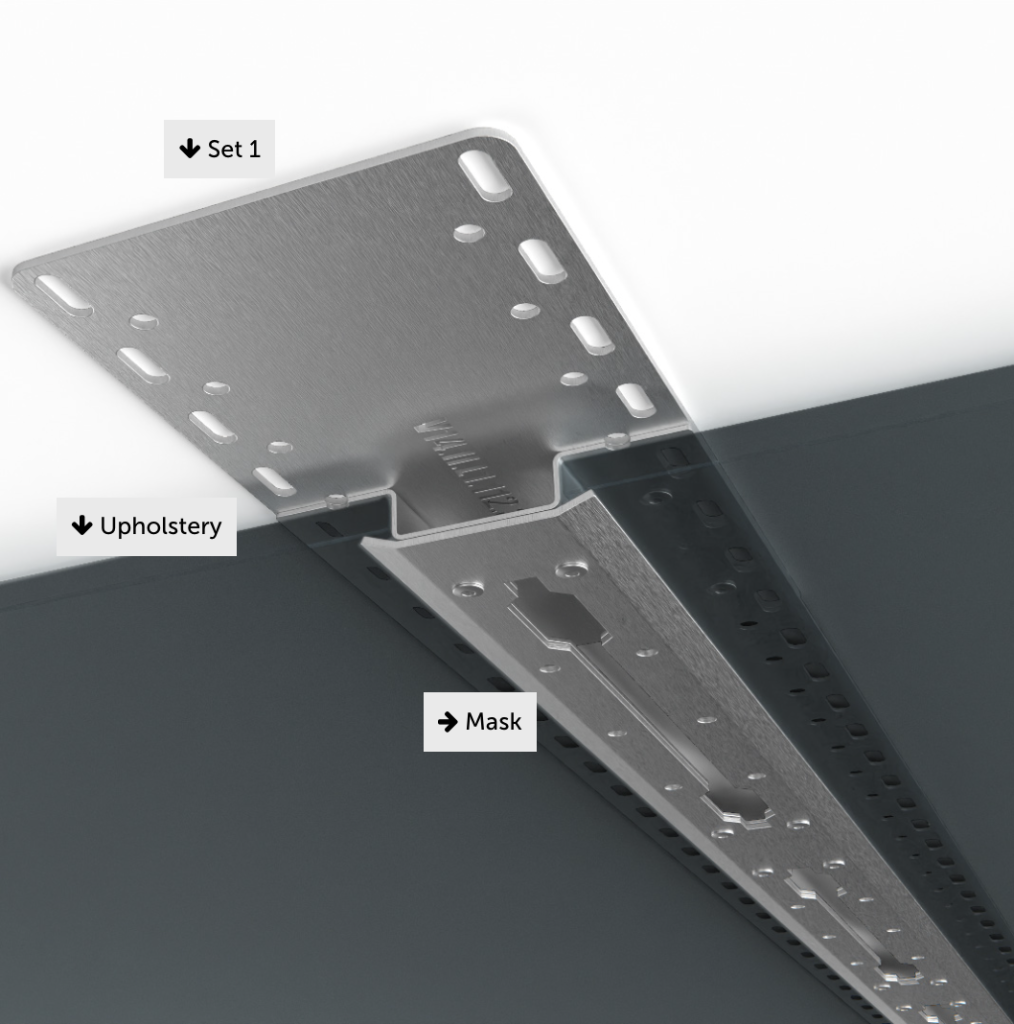

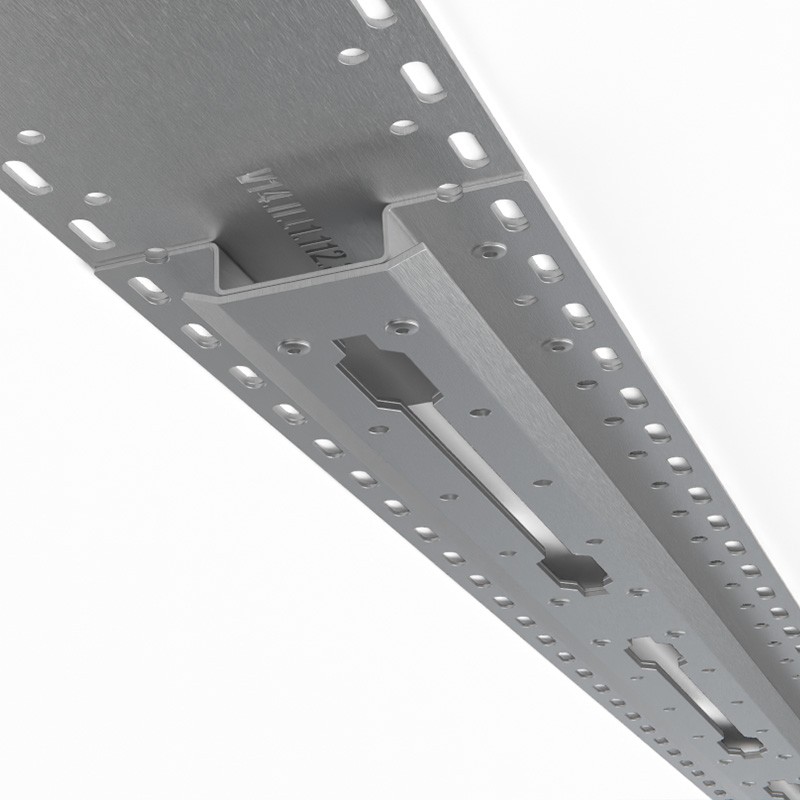

Moon Frame Set 1
Ideal for hanging Moon Boxes and upholstery, with the possibility of easy installation and disassembly. Elements thanks to special cutouts in the mask that allow free access to Moon Fix Bolt B holes. Thanks to this solution, you can disassemble the Moon Box at any time without leaving hanging elements.

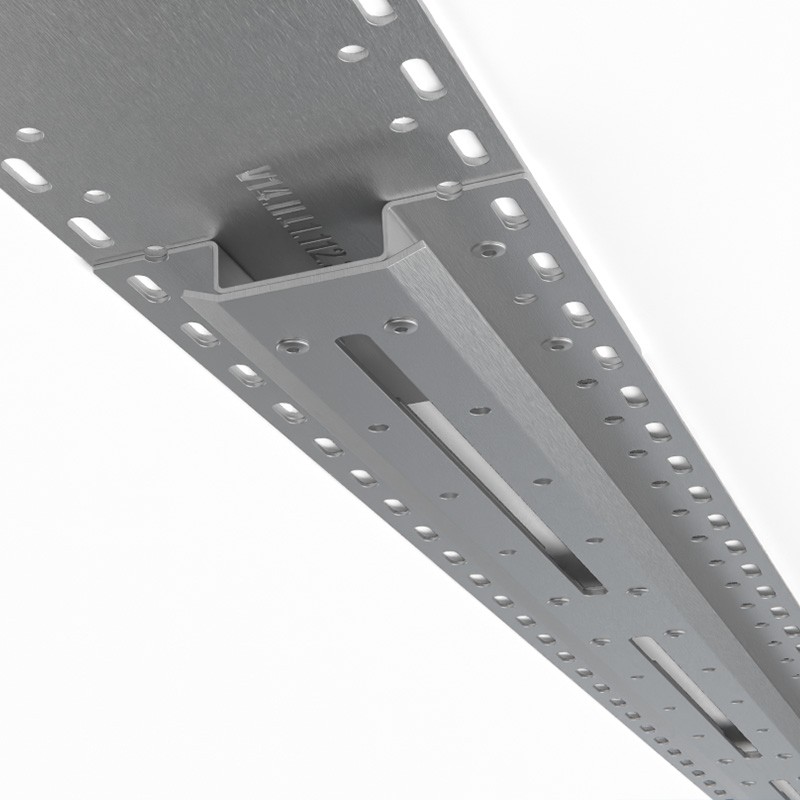

Moon Frame Set 2
Provides aesthetic masking of openings, while maintaining the possibility of storing, mounting and dismounting Moon Boxes. Perfect when you depend on an elegant appearance while maintaining full functionality. Special mask construction creates a delicate gap, which protects Moon Fix Bolt B from falling out.

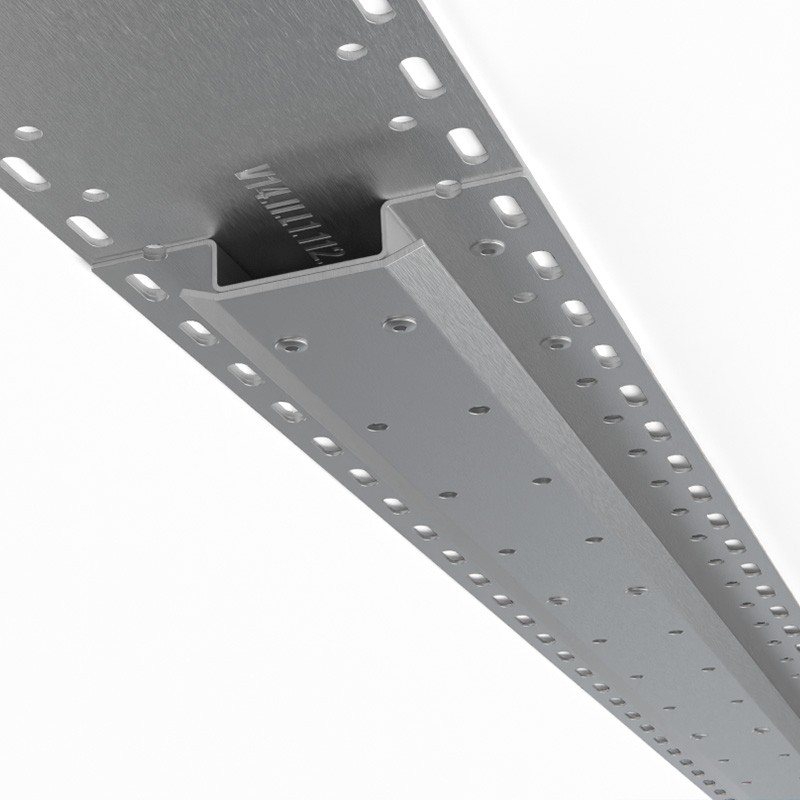

Moon Frame Set 3
Completely covers all openings, creating a minimalist, aesthetic finish in places where you don’t plan to hang furniture. Ideal for decorative parts. This set provides the purest visual line, perfectly complementing the modern interior style.
FAQ
What are the recommendations before starting installation?
Before starting the installation, it’s worth connecting the base with the mask and inserting Moon Fix.
Can Moon Frame be cut to the right length?
Yes, it can be cut using a metal saw.
What length of rivets should be used?
The recommended rivet length is 4/10 mm.

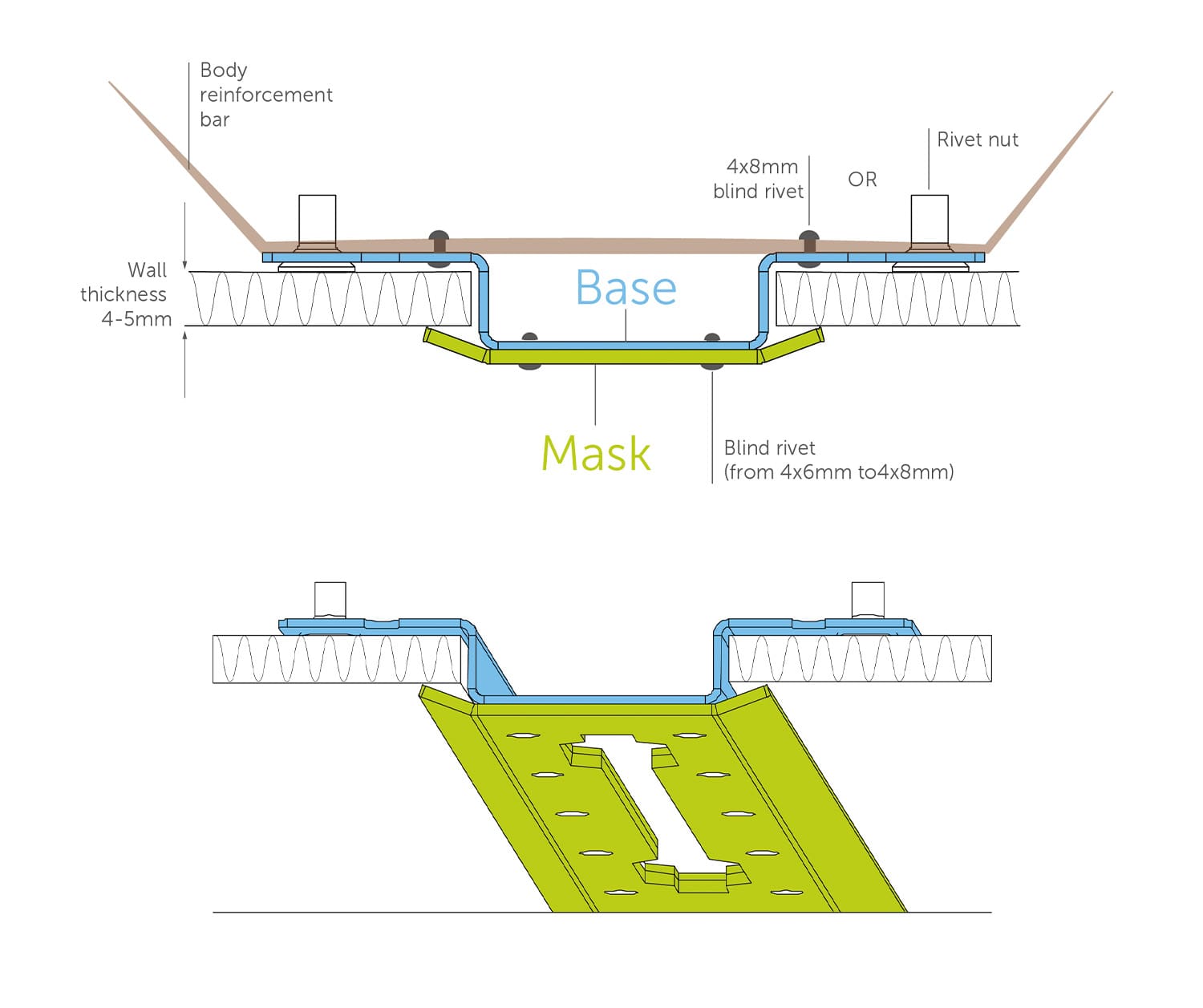

What does the Moon Frame installation involve?
Moon Frame can be mounted on rivet nuts or blind rivets with a diameter of 4 mm.
How do you solve the thermal bridge problem?
Moon Frame 2.0 is mounted after applying insulation but before upholstery (as it serves for upholstery installation).
What thickness of upholstery can be mounted?
Moon Frame sets are designed for mounting hard upholstery 5 mm thick, and soft upholstery (finished with foam or soft material 6 mm thick).
Is it possible to quickly remove the mask to take off the upholstery?
Yes, just drill out the rivets or unscrew the rivet nuts without damaging the Moon Frame structure.
How many rivets (mounting points) do I need for Moon Frame to hold?
One rivet withstands a breaking load of 5 kg.
Can I order a special color?
Yes. Contact us via info@ipmcampers.com
Can electrical wiring be run inside Moon Frame?
Absolutely.
Can rivets be masked?
Yes, using a RAL pen (touch-up pen with covering paint).
