Moon Frame 3.0 Set – MAN/CRAFTER L3H3
Moon Frame 3.0
Ready-to-install ceiling levelling set
for
Volkswagen Crafter II oraz MAN Tge
The system eliminates factory ceiling irregularities, creating a flat, stable structure ready for lining, furniture or any Moon Frame 2.0 modules. In just about an hour, you have the complete base for your entire interior.
Exceptionally strong

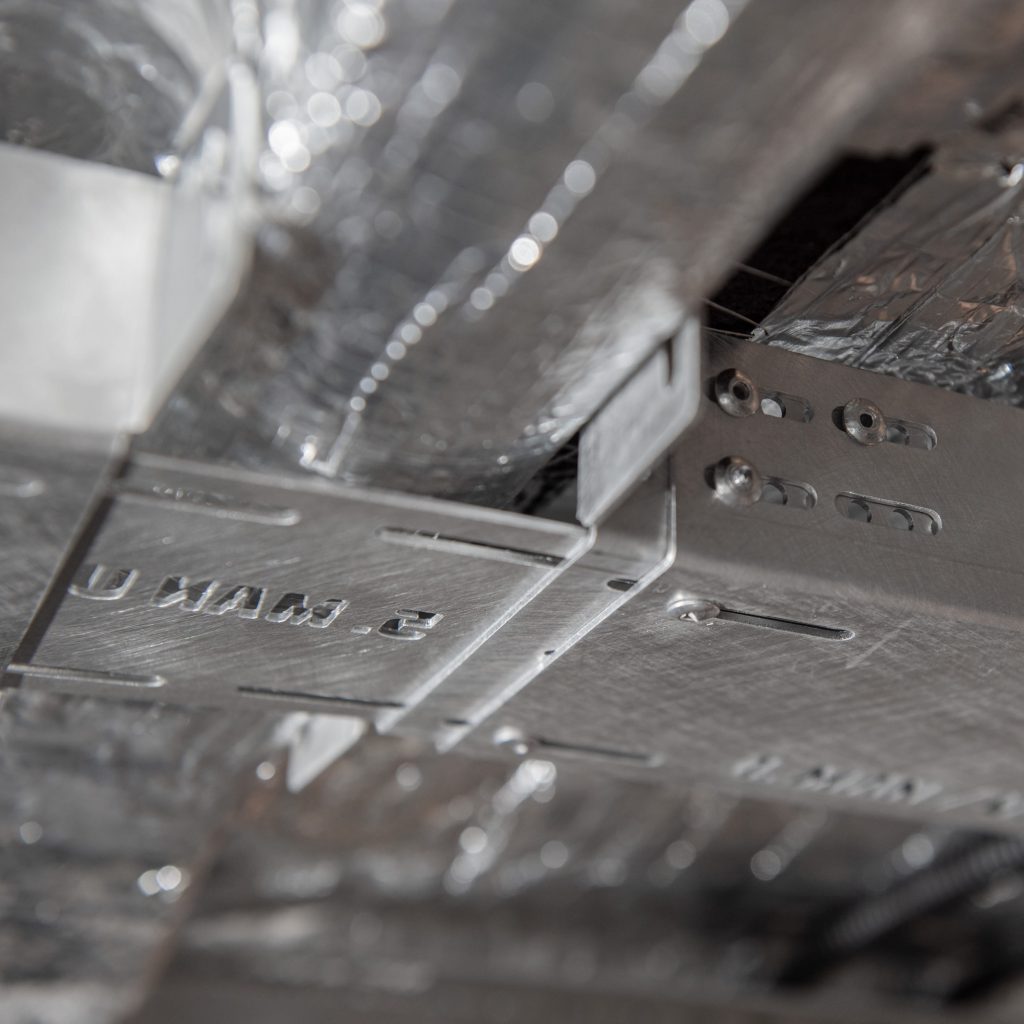

Fully riveted, with a point load capacity of up to 60 kg at a diameter of 1 cm. Mounted directly to the metal – on the bare vehicle structure or on pre-insulated bodywork.
Route cables without drilling.

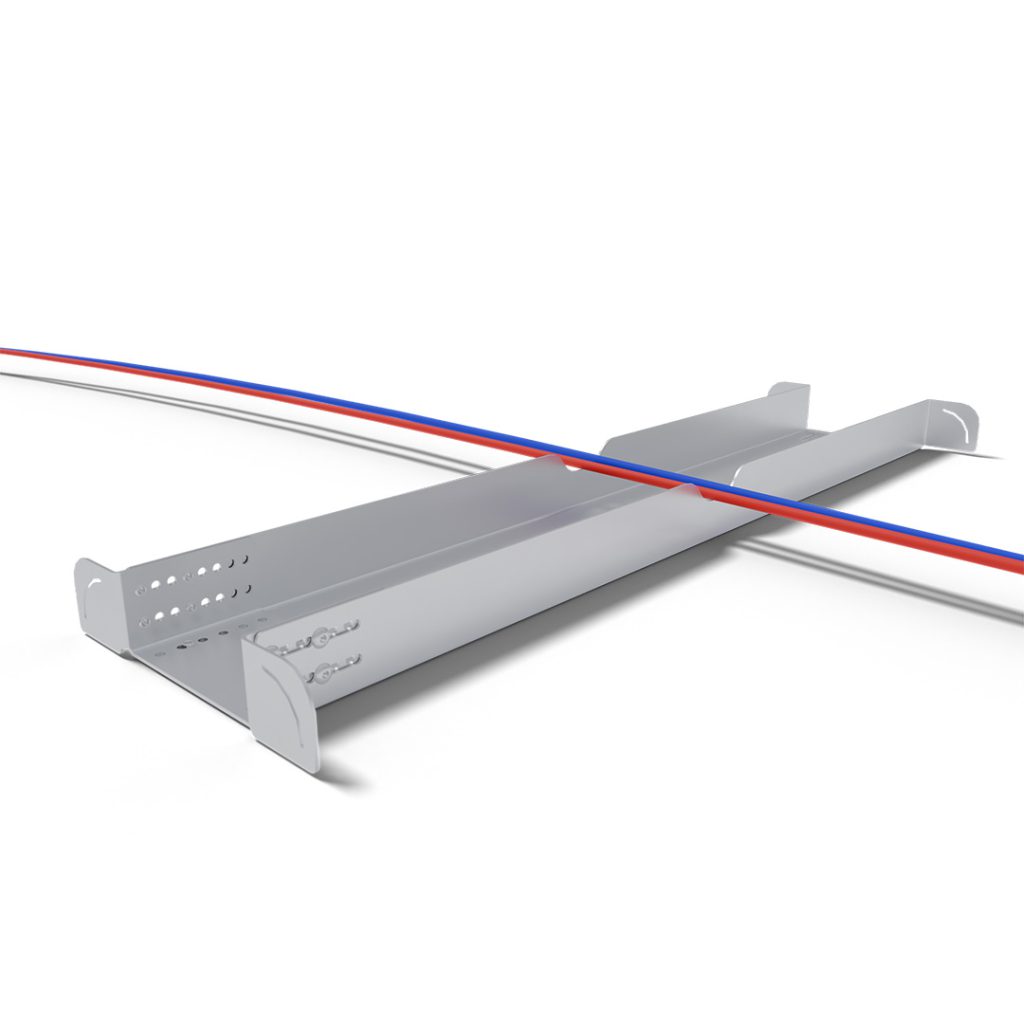

Moon Frame 3.0 has a factory-cut slot that allows you to hide wiring inside the profile – 12V electrics, solar cables, water supply lines, USB. Cables disappear into the structure before you even fit the lining.
How does it work?
Fix the Frame to the bodywork Rivet the Frame directly to the vehicle’s bodywork – on the bare structure or on pre-insulated panels. The system works with both.

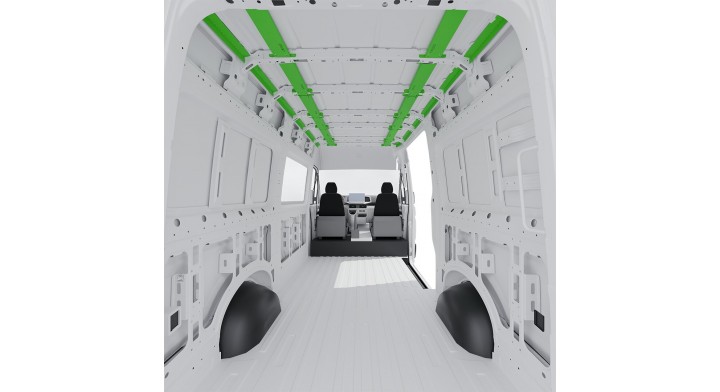

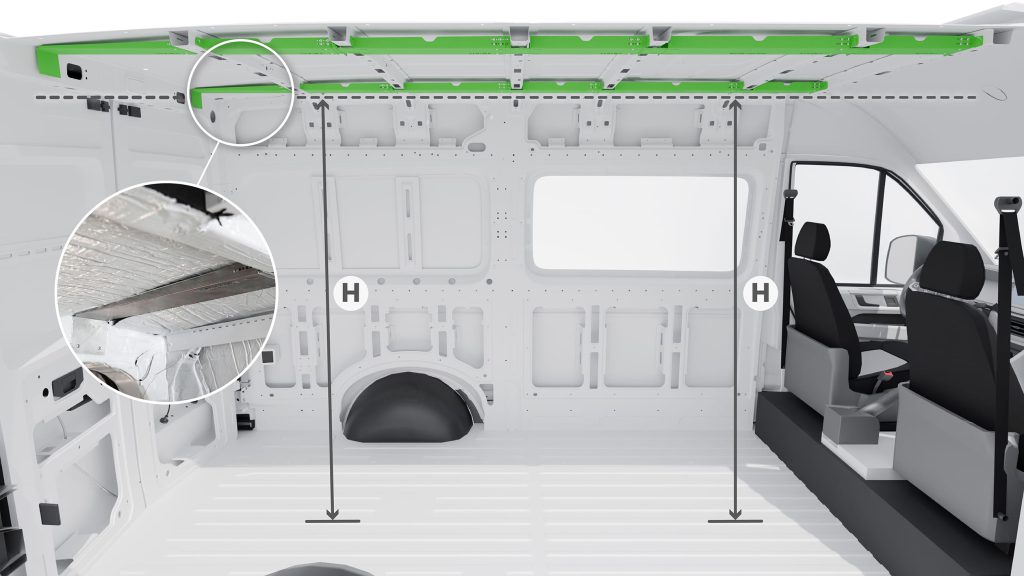

Level the ceiling 46 components precisely matched to the geometry of MAN TGE / Crafter L2H2 eliminate factory irregularities. The ceiling becomes flat – no on-site adjustments, no cutting, no improvising.
Ready base for your build You now have a solid structure for fitting lining, ceiling panels, side walls and any Moon Frame 2.0 modules. The whole installation takes about an hour.
FAQ
Does the set fit my vehicle?
Moon Frame 3.0 Set is designed exclusively for MAN TGE L2H2 and VW Crafter L2H2. If you have a different body variant or a different model – contact us and we’ll find the right solution.
Are the Moon Frame Corners included?
Yes. Corners 3.0 are included in the 46-piece set. You don’t need to buy anything separately – the set prepares you for both ceiling and side wall installation.
Can I install the set myself?
Yes. Installation requires no specialist tools or experience. All you need is a rivet gun and about an hour.
What surface can it be mounted on?
The system can be mounted directly on bare vehicle bodywork or on pre-insulated panels.
How strong is the system?
Each mounting point holds up to 60 kg at a diameter of 1 cm – more than enough to safely support lining, ceiling panels and other interior components.
Can I add Moon Frame 2.0 components later?
Yes. Moon Frame 3.0 Set is fully compatible with the Moon Frame 2.0 system – once the levelling set is in place, you can freely expand your interior with additional modules.
